Why Use Radar Level Sensors in Chemical Industry

Accurately monitoring the liquid and solid contents in tanks and containers is a constant issue for chemical processing plants across the globe. Radar level sensor technology, which uses non-contact microwaves to provide accurate readings even in the most challenging conditions, has emerged as the best option. Radar-based measuring devices retain remarkable precision and dependability, in contrast to conventional sensors that have trouble with corrosive materials, high temperatures, and volatile atmospheres. These instruments are essential for contemporary chemical operations looking to improve safety, operational efficiency, and regulatory compliance because of their perfect performance in the face of vapor, foam, and harsh process conditions.

Understanding Radar Level Sensor Technology in Chemical Applications

The chemical sector requires measuring technologies that provide unwavering accuracy while withstanding harsh conditions. By using electromagnetic waves to monitor material levels without physical touch, radar technology has revolutionized level measuring and eliminated numerous problems with traditional sensors.

Core Principles of Microwave Measurement Systems

Microwave signals are sent toward the material's surface, and the reflected signals are analyzed to determine the radar level. Industrial applications are dominated by two main technologies: frequency modulated continuous wave systems and pulse radar. Short microwave bursts are sent using pulse radar, which then calculates how long it takes for signals to return after reflecting off a material's surface. Accurate distance estimations are immediately derived from this time-of-flight computation. Pulse systems' resilience and simplicity make them appropriate for a range of chemical storage applications where dependable performance is more important than ultra-high precision.

With its enhanced measuring capabilities, FMCW technology is a more advanced technique that chemical processors are increasingly requesting. The sensor continually generates a radar signal with a frequency that rises linearly with time when FMCW is operating. The same antenna catches the returning signal when this broadcast signal bounces off the measured medium, which might be solid solids, liquid chemicals, or slurries. The frequency difference between the broadcast and received signals at any given time, which is directly related to the distance between the sensor and the target surface, is the important measuring parameter. This frequency difference is analyzed by sophisticated digital signal processing, such as Fast Fourier Transform techniques, to provide very precise distance estimations.

Why FMCW Radar Thrives in Harsh Chemical Environments?

There are many issues in chemical processing settings that might jeopardize less advanced systems. Conditions where many sensors fail include vapor clouds from volatile organic chemicals, process temperatures over 200°C, and pressures of several bars. The reason FMCW radar systems perform so well is because these ambient conditions have no effect on their non-contact measuring methodology. The microwave signals retain measurement precision even when the tank's atmosphere changes since they can pass through mist, foam, and dust without degrading.

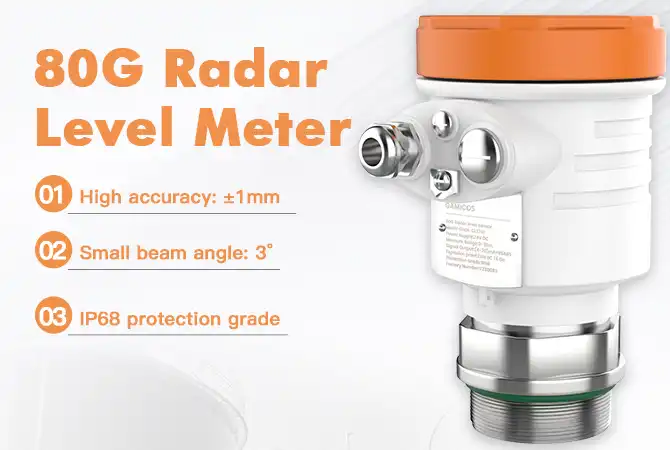

Our GLT74 series, which operates in the 80GHz frequency range and offers significant performance advantages over traditional radar sensors, is the most recent development in FMCW technology. This cutting-edge technology accomplishes a number of ground-breaking capabilities that meet important demands of the chemical sector. With an ultra-high measurement accuracy of ±1mm, it offers the precision required for batching operations, inventory management, and regulatory reporting. With a remarkable measuring range of 120m and an incredibly narrow blind zone of about 0.05m from the antenna, the gadget can monitor everything from big storage tanks to tiny mixing vessels.

Even in electrically loud surroundings, constant performance is ensured by operating in the comparatively clean 80GHz frequency range, which reduces electromagnetic interference from other industrial equipment. In both horizontal and vertical directions, the narrow beam angle of around ±3° minimizes undesired reflections from agitators, internal structures, and tank walls while accurately focusing signal energy on the material surface. Because of these features, the GLT74 series is especially useful in complicated chemical storage situations that include difficult tank geometries or installations with many internal obstacles.

Why Radar Level Sensors Excel Over Traditional and Competing Solutions?

Chemical facilities have historically relied on various level measurement technologies, each with inherent limitations that compromise performance, increase maintenance costs, or create safety concerns. Understanding why Radar Level Sensor technology surpasses these alternatives helps procurement teams make informed decisions that improve operational efficiency and reduce long-term costs.

Limitations of Float, Capacitive, and Ultrasonic Technologies

One of the earliest methods of measuring is represented by float-based systems, which use buoyant components that rise and fall in response to liquid levels. Float sensors have serious problems in chemical applications while being mechanically straightforward. The float materials and mechanical connections are attacked by corrosive chemicals, which leads to early failure and frequent replacement. Chemical accumulation on float surfaces modifies buoyancy properties, causing measurement inaccuracies that become worse with time. Reliability problems and unscheduled downtime during crucial production times result from moving components that need frequent maintenance and ultimately wear out.

As liquid levels fluctuate around probe components, capacitive level sensors record changes in electrical capacitance. The limitations of this contact-based technology are rapidly exposed in chemical conditions. Capacitance measurements are significantly impacted by coating development on probe surfaces, which may result in misleading level signals and overfill situations or production halts. Probe materials are attacked by very corrosive substances, which may lead to leakage channels and sensor failure. The need of direct contact with process materials also restricts utilization in the manufacturing of high-purity or sanitary chemicals and increases the danger of contamination.

Similar to radar systems, ultrasonic sensors provide non-contact measurement by using sound waves rather than electromagnetic radiation. However, radar systems may readily overcome the inherent limits of ultrasonic technology in chemical settings. The atmosphere has a significant impact on sound propagation; temperature gradients, vapor composition, and pressure changes all have an impact on measurement precision. Ultrasonic signals are absorbed by dense vapor clouds, resulting in signal loss and inaccurate results. Foam layers provide deceptive high-level indicators by prematurely reflecting ultrasonic frequencies. Extremes in temperature change how quickly sound travels, necessitating intricate compensatory algorithms that are still not as accurate as radar.

Radar Technology's Compelling Advantages for Chemical Processing

Compared to conventional methods, radar measurement's non-contact nature drastically alters dependability and maintenance needs. Corrosive substances cannot harm sensor components as the sensor never comes into contact with the process material, removing a major cause of failure. Because microwave signals may readily pass through small coating layers, chemical buildup that might jeopardize other technologies has no effect on radar performance. Extended service life and much lower maintenance costs are directly correlated with this resistance to environmental deterioration.

Radar sensors are especially useful for chemical plants that handle flammable or explosive compounds because they can operate safely and dependably in dangerous environments. Radar equipment that are properly approved provide precise readings without producing ignition sources and satisfy strict safety requirements for explosive atmospheres. Process control and safety systems that avert hazardous situations are supported by the reliable performance in volatile settings, which guarantees ongoing monitoring even in disturbed circumstances.

Chemical processors that switched from antiquated measuring methods to cutting-edge radar technologies have shown us incredible success stories. Following ongoing accuracy issues brought on by vapor interference, a multinational petrochemical plant changed the ultrasonic sensors in their solvent storage area. Following the installation of our radar level measuring devices, they lowered yearly maintenance expenses by 67%, eliminated false alarms that had previously averaged twelve per month, and achieved constant ±2mm accuracy independent of vapor conditions. Within eighteen months, the procurement team stated that the accuracy benefits allowed for tighter inventory management and lower working capital needs, while the dependability increase alone justified the expenditure.

Selecting the Right Radar Level Sensor for Chemical Industry Procurement

Specifying appropriate radar measurement systems requires careful analysis of application requirements, process conditions, and operational objectives. Procurement teams benefit from a structured approach that aligns technical specifications with actual operational needs while considering supplier capabilities and long-term support requirements. The choice of Radar Level Sensor is crucial in ensuring that the system meets these criteria and delivers reliable, accurate performance over time.

Critical Assessment Factors for Chemical Applications

Understanding your specific process environment represents the essential foundation for successful sensor selection. Fluid properties significantly influence measurement performance—chemicals with low dielectric constants present different challenges than highly conductive solutions. Tank geometry affects signal propagation patterns, as tall narrow vessels create different reflection characteristics than wide shallow tanks. Internal structures like heating coils, agitators, and baffles may create secondary reflections that require sophisticated signal processing to eliminate.

Measurement range requirements vary dramatically across chemical applications. Small day tanks holding a few hundred liters need sensors with minimal blind zones to maximize usable tank volume, while large storage terminals with tanks exceeding 20 meters in height demand extended range capabilities. The 80GHz technology employed in advanced systems like our GLT74 series addresses both extremes, offering blind zones as small as 0.05m while maintaining accuracy across ranges extending to 120m. This versatility allows standardization on a single technology platform across diverse applications, simplifying procurement, reducing spare parts inventory, and accelerating technician training.

Output format and communication protocol requirements deserve careful consideration during specification development. Modern process control systems increasingly demand digital communication rather than simple analog signals. Protocols like HART, Modbus, and Profibus enable advanced diagnostics, remote configuration, and integration with asset management systems. The ability to remotely monitor sensor health, adjust parameters without field visits, and receive predictive maintenance alerts delivers operational advantages that justify any incremental cost over basic analog devices.

Evaluating Suppliers and Building Reliable Partnerships

The global market offers numerous radar sensor suppliers, including established brands like Siemens, Emerson, Honeywell, Endress+Hauser, Krohne, and ABB, each with proven track records in chemical industry applications. These manufacturers provide comprehensive product lines spanning various frequency bands, measurement ranges, and certification levels. Their extensive installed base and mature support infrastructure offer reassurance for conservative procurement approaches prioritizing proven technology and established service networks.

However, emerging suppliers like GAMICOS increasingly challenge traditional market dynamics by combining advanced technology with flexible customization and competitive pricing structures. Our engineering team has developed deep expertise in adapting radar measurement solutions to specific application requirements, offering customization options that larger manufacturers cannot efficiently provide. This includes modified antenna configurations for unusual tank geometries, specialized process connections for proprietary flange standards, and customized signal processing algorithms for challenging measurement scenarios involving extreme foam or turbulence.

Bulk purchasing capabilities and delivery reliability significantly impact project timelines and inventory carrying costs. Chemical facilities undertaking major expansion projects or maintenance turnarounds need suppliers who can deliver dozens or hundreds of instruments on compressed schedules. We maintain production capacity and component inventory specifically to support large orders, with demonstrated capability to deliver 500+ units within 6-8 weeks while maintaining rigorous quality standards. This responsiveness helps project managers meet aggressive commissioning schedules without compromising on quality or accepting substitute products that may not meet original specifications.

Technical support quality often matters more than initial purchase price when evaluating total cost of ownership. The ability to quickly resolve installation questions, troubleshoot unexpected measurement issues, and provide application engineering support during commissioning prevents costly project delays. Our technical team includes engineers with extensive chemical industry experience who understand the practical challenges of integrating measurement systems into operating facilities. We offer multiple support channels including email, phone, and video conferencing, with response times typically under four hours for technical inquiries and same-day support for urgent commissioning issues.

Future Trends and Technological Advancements in Radar Level Sensing

Radar measurement technology continues evolving rapidly, driven by advances in electronics, signal processing, and connectivity. Chemical industry procurement teams benefit from understanding emerging trends that will shape future Radar Level Sensor capabilities, enabling strategic decisions that maintain compatibility with evolving operational requirements.

Industrial Internet of Things and Smart Sensor Integration

The convergence of measurement technology and Industrial Internet of Things platforms creates new possibilities for process monitoring and optimization. Smart radar sensors equipped with embedded processing capabilities analyze measurement data locally, identifying trends and anomalies that might indicate process upsets or equipment problems. Rather than simply reporting level values, these intelligent instruments provide actionable insights—detecting unusual level fluctuations that suggest pump problems, identifying foam accumulation patterns that indicate process chemistry changes, or recognizing signal characteristics associated with impending sensor fouling.

Connectivity advancements enable radar sensors to communicate directly with cloud-based analytics platforms without requiring extensive infrastructure investment. Wireless communication protocols and edge computing capabilities allow retrofitting existing tanks with advanced measurement systems that integrate seamlessly with modern data infrastructure. This democratization of advanced measurement technology allows smaller chemical processors to access capabilities previously available only to enterprises with substantial automation budgets, leveling the competitive landscape and driving industry-wide performance improvements.

Miniaturization and Multifunctional Sensor Development

Ongoing miniaturization creates radar measurement solutions suitable for space-constrained applications that previously required compromise technologies. Compact 80GHz radar sensors now fit mounting locations barely larger than traditional float switches, bringing advanced measurement capabilities to small vessels, mix tanks, and mobile containers. The size reduction does not compromise performance—the same ±1mm accuracy and robust environmental resistance characterize these compact devices, merely packaged in smaller enclosures suitable for limited installation spaces.

Multifunctional sensors that combine level measurement with temperature monitoring, pressure sensing, or chemical property analysis represent another emerging trend. Rather than installing separate instruments for each parameter, integrated devices reduce tank penetrations, simplify installation, and lower overall system costs. The consolidated data from multifunctional sensors also enables more sophisticated process control strategies that account for the complex interactions between level, temperature, and pressure in chemical processes.

Looking ahead, chemical industry procurement professionals should prioritize measurement systems offering upgradeability and long-term compatibility with emerging technologies. Sensors with flexible firmware, expandable communication capabilities, and modular construction protect capital investments against technological obsolescence. We design our radar measurement systems with this future-focused philosophy, incorporating hardware capabilities that support future software enhancements and communication protocols not yet widely adopted but likely to become standard within the instruments' 15-20 year operational lifespan.

Conclusion

Radar level measurement technology has fundamentally transformed chemical industry operations by delivering unprecedented accuracy, reliability, and safety in demanding process environments. The non-contact measurement principle eliminates corrosion and contamination concerns while maintaining precision regardless of vapor, temperature, or pressure conditions that compromise alternative technologies. Radar Level Sensor systems, especially advanced 80GHz FMCW systems, represent the current performance pinnacle, offering millimeter-level accuracy across measurement ranges from centimeters to over 100 meters.

Strategic procurement decisions that prioritize radar technology deliver immediate operational benefits through improved process control and reduced maintenance, while positioning facilities to capitalize on emerging smart sensor capabilities that will define the next generation of chemical processing automation.

Partner With GAMICOS for Advanced Radar Level Measurement Solutions

Chemical industry professionals seeking a reliable radar level sensor manufacturer that combines cutting-edge technology with responsive service and competitive pricing will find an ideal partner in GAMICOS. Our GLT74 series 80GHz radar instruments deliver exceptional ±1mm accuracy across measurement ranges from 0.05m to 120m, utilizing advanced FMCW technology with superior anti-interference capabilities and narrow beam characteristics ideal for complex chemical applications. We serve thousands of customers annually across 100+ countries, offering comprehensive OEM and ODM customization services that adapt our proven technology to your specific requirements—whether that involves modified process connections, specialized communication protocols, or application-specific signal processing algorithms.

Our technical support team responds to inquiries within hours, providing the application engineering expertise that ensures successful system integration and long-term reliable operation. Contact our team at info@gamicos.com to discuss your chemical level measurement challenges and discover how our advanced radar technology, backed by rigorous quality control and international certifications, can improve your operational efficiency while reducing maintenance costs and enhancing process safety.
