Submersible Level Sensors: Accuracy Meets Corrosion Resistance

Submersible level sensors are the best option when industrial operations need to measure liquid levels precisely in tough, corrosive environments. For petroleum plants, pharmaceutical facilities, and wastewater treatment operations, these specialized devices are essential because they are very accurate and don't rust. A submersible level sensor works by using hydrostatic pressure to give accurate data all the time, even when it's buried in harsh liquids. Using high-tech materials like PTFE housing and ceramic sensing elements together makes the device last a long time and keep measuring accurately in a wide range of industrial settings.

Comprehending Submersible Level Sensors

How Do Submersible Pressure Sensors Work?

Hydrostatic pressure reading is the basic idea behind submersible pressure sensors. When these things are immersed in liquid, they measure the pressure of the fluid column above the sensor element. This pressure is turned into an electrical signal by the sensor, which is usually 4-20mA or a digital output. This signal gives tracking and control systems real-time level data.

The sensor is put in place by lowering it to the deepest point in a tank or well, where it can measure. It then stays above the bottom of the tank or well. This placement allows for precise measurement of hydrostatic pressure, which can be directly linked to the current amount of liquid. Because they can keep an eye on things all the time, these sensors are very useful for automated industrial processes that need to keep precise levels.

Critical Applications Across Industries

Companies that make industrial automation tools depend on these submersible level sensors to be able to connect to complicated control systems. For example, chemical and oil companies use them to keep an eye on toxic substances in storage tanks, and drug companies need their accuracy for batch processing. Their hygienic design choices help the food and drink business make sure that their products are safe and meet quality standards.

Contractors and project managers in engineering like how flexible underwater sensors are for a wide range of uses. From plants that clean up pollution to those that process chemicals, these devices always work well, even when things get tough. Because they can handle high and low temperatures, changes in pressure, and harsh chemicals, they can be used in places where regular sensors would fail.

Comparing Submersible Level Sensors With Alternative Technologies

Performance Analysis Against Ultrasonic and Radar Technologies

When looking at different ways to measure, underwater devices are clearly better than ultrasonic and radar options. Ultrasonic sensors have trouble with foam, mist, and surfaces that are moving around, but underwater devices stay accurate no matter what the surface is like. Radar devices can measure things without touching them, but they can't work well with conductive liquids and need clear paths for signals to travel.

Submersible sensors don't have problems with beam deflection, signal confusion, or external factors that can affect non-contact technologies because they use direct contact measurement. This dependability is very important for important process control tasks where measurement mistakes could cause big problems or even put people in danger.

Digital vs. Analog Output Considerations

These days, submersible devices can communicate in both traditional and digital ways, so they can adapt to different system needs. Digital methods like RS485 and HART allow for advanced diagnostics and remote setup, while traditional 4-20mA analog outputs make it easy to connect to current control systems.

By giving detailed information about the health of sensors, digital communication methods make predictive maintenance strategies easier to use. This feature lets maintenance teams find possible problems before sensors fail, which cuts down on unplanned downtime and maintenance costs. Digital sensors can be programmed, which also makes it easy to calibrate and change the range without having to physically touch the device.

Technical Insights

Essential Specifications for Industrial Applications

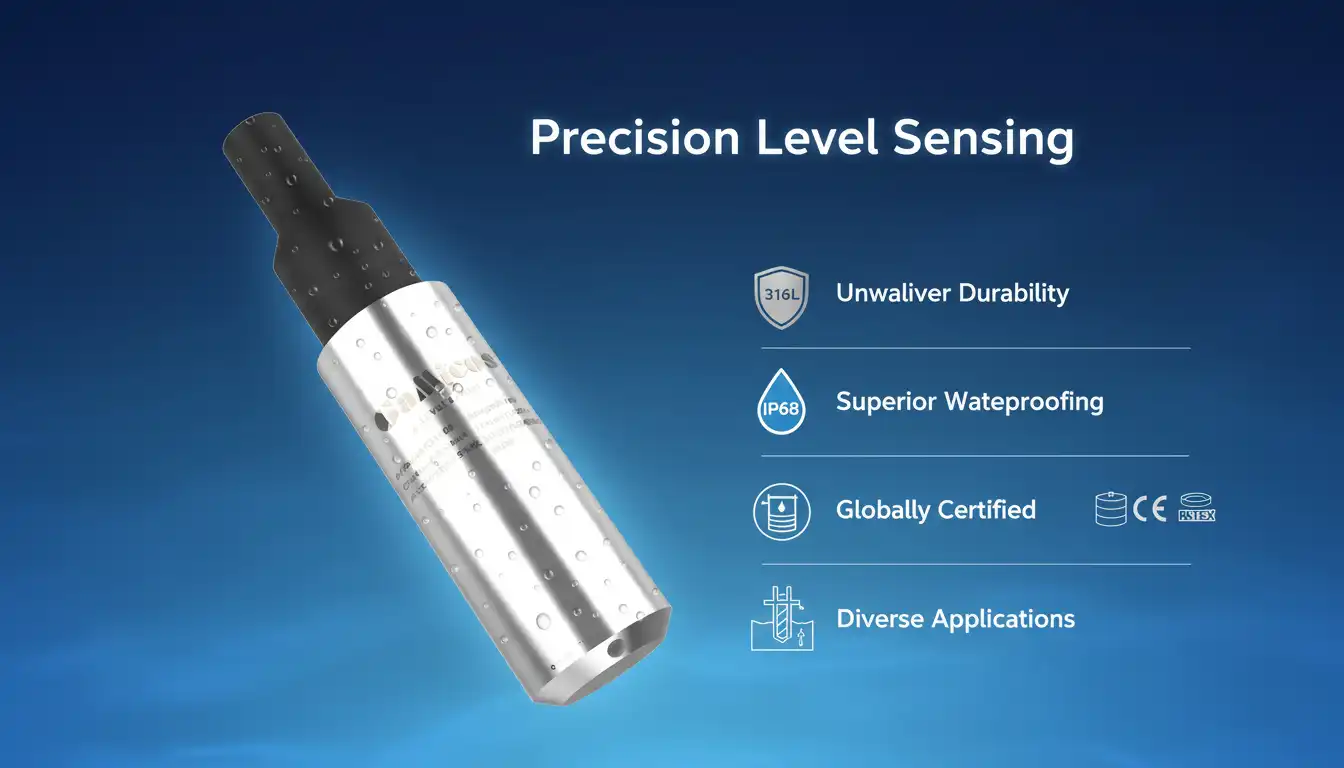

Knowing about important specs makes sure that the right submersible level sensor is chosen for each application. IP68 grades mean that the device is completely protected from dust and water, which is necessary for safe operation underwater. Temperature tolerance rates tell you if a sensor can work in harsh environments, and pressure ranges need to be able to handle both normal working pressure and possible overpressure situations.

With its ceramic sensing core and PTFE shell, the GAMICOS GLT570 anti-corrosion level sensor is a great example of advanced standard integration. This mix gives it great resistance to rust while keeping measurements stable as temperatures change. The programmable emitter circuit makes it possible to precisely calibrate and easily change the zero and full-scale settings, which speeds up the installation and starting processes.

Installation Best Practices and Maintenance Guidelines

Installing sensors correctly has a big effect on how well they work and how long they last. When placing in static wells or tanks, putting the sensor inside a protective steel pipe keeps it from getting damaged by trash and keeps the accuracy of the measurements. The method of suspending using wire hangers lets you change the amount of liquid while keeping the container securely in place.

For best efficiency, here are the most important things to think about when installing:

• Location Choice: Pick measurement places that are far from turbulence, inlets, and outlets to get stable results and keep fluid dynamics from damaging the sensor.
• Cable Management: Use venting wires that are made to handle certain environmental problems, like being resistant to oil, acid-alkali, and having more mechanical power.
• Calibration Steps: Do the initial calibration using known reference values and make sure the system is accurate across the whole measurement range before turning it on.

Checking the zero and span calibration, visually inspecting the wire connections, and cleaning the sensor surfaces when possible should all be part of regular maintenance plans. Preventive repair methods lower operating risks and get the most out of investments in sensors.

How to Choose and Procure the Right Submersible Level Sensor?

Strategic Selection Criteria for Industrial Applications

When choosing monitors for different uses, procurement teams have to look at a number of factors. When dealing with acidic or abrasive media that need special materials, fluid interaction is the most important thing to think about. Advanced sensors like the GLT570 have a PTFE housing and ceramic sensing elements that are more resistant to chemicals than normal stainless steel designs.

Sensor specs are based on measurement range needs, and depth capabilities need to be higher than maximum fluid levels by the right amount to ensure safety. Specifications for accuracy must match the needs of process control, while the need for accuracy must be balanced with the need to stay within budget. Temperature and pressure ratings make sure that the device will work reliably in the circumstances that are expected in the surroundings.

Supplier Evaluation and Procurement Strategy

Leading makers of industrial submersible level sensors, like Siemens, Honeywell, and ABB, have wide ranges of products with different features and prices. But specialized makers like GAMICOS have a lot of experience measuring the level of liquids and can offer better tailoring and technical support than other companies.

When looking at different providers, you should see if they can offer full solutions that include sensors, wires, mounting tools, and software for setting up the system. During the installation and commissioning stages, technical help is very important. After-sales service makes sure that the system works well for a long time. Some things to think about when buying in bulk are how reliable the service is, how consistent the quality is, and how possible it is to work together on ongoing projects.

Because OEM and ODM services are available, sensors can be built into custom equipment designs with the right branding and paperwork. This versatility is helpful for companies that make equipment that needs sensors to be a part of bigger systems.

Case Study: Leveraging Accurate and Corrosion-Resistant Sensors in Industrial Applications

Real-World Performance in Chemical Processing

It was hard for a big petroleum plant to figure out how much liquid was in storage tanks that held acids that are very bad for metal. Traditional sensors broke down quickly, so they had to be replaced often, and measurement errors made it hard to plan production. These operating problems were solved by using underwater sensors with PTFE housing and ceramic sensing elements that don't rust.

For the launch, old sensors were swapped out for ones that were made to work in harsh chemical conditions. To make sure the whole system would work, custom venting wires with better acid protection were chosen. As part of the installation process, the right grounding and surge protection were used to keep electrical interference from happening in an industrial setting.

Quantified Benefits and Return on Investment

Over the course of twelve months, tracking performance showed that measurement accuracy and maintenance costs got a lot better. During the testing time, the sensor's accuracy stayed within 0.1%, which made it possible to accurately handle inventory and plan output. By getting rid of the need to change sensors so often, maintenance labor costs dropped by 60% while working safety increased.

The design made the sensor last longer, from six months to over three years. This saved a lot of money because it meant the sensor didn't have to be replaced as often. Better measurement precision allowed for the most efficient use of chemicals, which cut the cost of materials by about 5% a year. The investment paid for itself in eighteen months thanks to lower upkeep costs and better operating efficiency.

Conclusion

Submersible level sensors are the best choice for industrial uses that need accurate measurements and protection to rust. The use of modern materials like ceramic sensing elements and PTFE housing, along with hydrostatic pressure principles, ensures consistent performance in difficult conditions. These sensors are much better than other technologies because they measure directly and are not affected by surface factors that can mess up non-contact methods. For industrial processes to get the best performance and return on investment, the right choice must be made by taking into account fluid compatibility, weather conditions, and system integration needs.

FAQ

What factors influence submersible sensor accuracy?

The accuracy of the sensor relies on a number of important factors, such as the quality of the installation, the type of fluid used, and the surroundings. Placing the sensor away from sources of turbulence will ensure stable pressure readings, and making sure the line has enough air flow will stop measurement mistakes caused by changes in barometric pressure. Changes in the density of a fluid caused by changes in temperature or makeup can throw off results if they are not corrected through calibration methods.

How do ceramic cores enhance corrosion resistance?

Compared to metal diaphragms, ceramic sensor elements are better at resisting chemicals. Ceramics are neutral, which means they don't break down when exposed to acids, alkalis, and organic solvents, which would hurt other types of sensors. When combined with PTFE housing, ceramic cores make it possible for sensors to work reliably in harsh chemical conditions where other sensors would break down quickly.

Can sensors be customized for specific industrial needs?

Modern sensor makers let you change a lot of things about their products, like the case material, the length of the cables, and the way they connect to the power source. Process links can be changed to fit different tank layouts, and output signals can be changed to work with control systems that are already in place. There are different kinds of environmental packaging that can be used to deal with problems like exploding atmospheres or very high or very low temperatures.

Partner with GAMICOS for Advanced Submersible Level Sensor Solutions

GAMICOS is a reliable company that makes submersible level sensors and provides accurate measurement services to more than 100 countries around the world. Our GLT570 corrosion-resistant sensor has ceramic sensing technology and a PTFE shell, which makes it the most durable sensor on the market for harsh industrial settings. We make it easy for your automation systems to work with us by offering full OEM/ODM services and personal expert support. Get in touch with our engineering team at info@gamicos.com to talk about your unique measurement needs and look into custom sensor options that fit your business's needs.
