Absolute vs Gauge Pressure Transmitters: Key Differences

The primary distinction between absolute and gauge pressure transmitters lies in their reference points for measurement. Absolute pressure transmitters measure pressure relative to a perfect vacuum, providing readings that include atmospheric pressure effects. Gauge pressure transmitters, conversely, measure pressure relative to atmospheric pressure, effectively canceling out atmospheric variations. This fundamental difference makes absolute transmitters ideal for sealed systems and vacuum applications, while gauge transmitters excel in open systems where atmospheric pressure serves as the baseline. Understanding this distinction is crucial for selecting the appropriate pressure transmitter for specific industrial applications.

Understanding Pressure Transmitters: Basics and Working Principles

Pressure transmitters serve as the backbone of modern industrial monitoring systems, converting physical pressure into electrical signals that control systems can interpret. These sophisticated devices utilize various sensing technologies to detect pressure changes and transform them into standardized output signals compatible with industrial automation equipment.

Core Technology and Sensor Types

The detecting part is what makes a pressure emitter work. When put under mechanical stress, piezoelectric devices make electrical charges. This makes them very sensitive to changes in pressure that happen quickly. Capacitive sensors are very stable and accurate. They measure pressure by changing capacitance when the plate bends. Strain gauge sensors accurately measure pressure by noting changes in the receiving element's shape. They work well at a lot of different temperatures.

Another advanced technology is diffused silicon pressure sensors, which work especially well in situations that need to be very precise. The GPT200 general pressure sender is an example of this technology. Its sensitive part is a spread silicon pressure sensor. The built-in processing circuit takes millivolt data and turns them into normal voltage and current outputs. This lets computers, control instruments, and display instruments connect directly to the device.

Signal Processing and Output Standards

Modern pressure sensors have advanced data processing features that make measurements more accurate. The sensor element sends out electrical signals that are amplified and linearized to make standard outputs like 0-10V voltage signals or 4-20 mA current loops. Standardization makes sure that different industrial control systems and data gathering tools can work together. In the signal processing stage, the difference between measuring absolute pressure and measuring gauge pressure becomes clear.

When you measure absolute pressure, you include the full pressure number from a zero reference (a perfect vacuum), but when you measure gauge pressure, you take air pressure away from the total value. This difference in processing has an effect on how to calibrate and what kinds of applications can be used.

Key Differences Between Absolute and Gauge Pressure Transmitters

Understanding the technical distinctions between absolute and gauge pressure transmitters enables engineers to make informed decisions that optimize system performance and measurement accuracy.

Reference Point Variations

Absolute pressure sensors use a reference room that is sealed and kept at a vacuum. With this setup, you can take readings from zero pressure (a perfect vacuum) up to the highest stated pressure. The vacuum reference stays the same even if the air pressure changes, so results are always the same even when the surroundings changes. In gauge pressure sensors, the atmospheric pressure is measured by devices with vents that let air pressure act on one side of the detecting diaphragm. This setting takes into account changes in the air pressure automatically, showing only the pressure above or below the level of the atmosphere.

Calibration and Accuracy Considerations

The steps for calibrating these different types of transmitters are very different. Absolute pressure sensors need to be calibrated against known levels of absolute pressure. This is usually done in a controlled setting with deadweight tests or precision pressure controls. The process of tuning has to take into account the effects of local elevation and air pressure. The air pressure is used as the zero reference point for calibrating gauge pressure sensors. This method makes field testing easier, but you need to be aware of changes in local air pressure that could affect the accuracy of your measurements.

Installation and Environmental Factors

When choosing and installing an emitter, environmental factors are very important. Absolute pressure sensors need to be kept away from water and other things that could damage the vacuum reference box. Places where the installation is done should keep the sealed reference from being exposed to large changes in temperature. Gauge pressure sensors need exhaust systems that are properly built so that wetness doesn't get in but still lets the air pressure be communicated. To keep the accuracy of the measurements, the opening device must stay free of dirt and moisture.

Comparative Evaluation: Choosing Between Absolute and Gauge Pressure Transmitters

Selecting the optimal pressure transmitter requires a comprehensive evaluation of application requirements, performance specifications, and long-term operational considerations.

Performance Characteristics

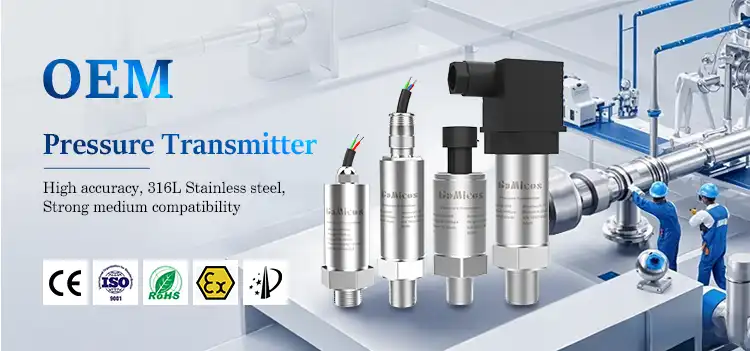

The GPT200 pressure sensor has improved performance features that make it useful in a wide range of situations. Its piezoresistive pressure sensor and high-performance specialized electronics make it safe and reliable overall, and they also let signals be sent over long distances. Each product goes through a lot of tests to make sure it works the same way every time. These include design verification, object screening, process validation, cycle loading, age tests, and weather modeling.

Key performance advantages of modern pressure transmitters include robust construction and reliable operation. Here are the core advantages of advanced devices like the GPT200:

• 316L Stainless Steel Construction: The isolation diaphragm utilizes corrosion-resistant materials suitable for harsh chemical environments and extended service life
• Versatile Signal Output: Micro amplifier technology provides both voltage and current signal outputs, accommodating various control system requirements
• Superior Stability: Strong anti-interference capabilities, high stability, and low drift characteristics ensure consistent measurements over extended periods
• Flexible Integration: Multiple electrical interface options and a lightweight, compact design facilitate easy installation and OEM customization
• Comprehensive Range Coverage: Full capability to measure absolute, gauge, and sealed gauge pressures in a single device platform

These advantages effectively address common industrial challenges including measurement reliability, system integration complexity, and maintenance requirements.

Cost and Procurement Considerations

The original buy price is only one part of the total cost of ownership. Other costs include setup, testing, upkeep, and replacing. Absolute pressure sensors usually have higher starting prices because they need to be calibrated in a special way and have a locked reference box. They do, however, often work better in challenging situations, which could lower long-term repair costs. Most of the time, gauge pressure sensors have lower starting costs and easier installation processes. Their wide use in common manufacturing tasks leads to economies of scale that help budgets for buying things. Acquisition costs can be lowered even more by buying in bulk and using standard specs.

Practical Guide to Installing and Calibrating Pressure Transmitters

Proper installation and calibration procedures ensure optimal performance and longevity of pressure measurement systems.

Installation Best Practices

Careful site preparation and fitting factors are the first steps to a successful installation. The place where the emitter is installed should be easy to get to for repair while also keeping it safe from physical damage and harsh weather. If you route your impulse lines correctly, measurement mistakes caused by trapped gases or vapor buildup can be avoided. Electrical lines need to be careful to keep the signal strong and reduce noise as much as possible. Shielded wires help keep electromagnetic interference from happening, which could change how accurate measurements are. To make sure the machine works safely, grounding should be done according to the manufacturer's instructions and area electrical rules.

Calibration Procedures and Intervals

Calibration of a pressure transmitter ensures measurement accuracy and compliance with quality standards. The interval between calibrations depends on the criticality of the application, environmental conditions, and regulatory requirements. Critical safety systems may require monthly calibration, while less demanding applications might only need annual checks. During the calibration process, known pressure standards are applied, and the accuracy of the pressure transmitter output across its measurement range is verified. Maintaining calibration records allows preventative maintenance systems to detect potential performance issues before they occur.

Advantages of Using the Right Pressure Transmitter Type for Industrial Applications

Appropriate transmitter selection delivers significant operational benefits that extend beyond basic pressure measurement capabilities.

Operational Efficiency and Safety

Precise pressure control lets you optimize the process, which raises the quality of the result and lowers the amount of waste. Accurate readings help automatic control systems keep things running at their best with as little help from a person as possible. Reliable pressure readings are needed for safety systems to take action when working conditions go beyond safe limits. Modern pressure sensors help with Industry 4.0 projects by letting computers talk to each other and keeping an eye on things from afar. Wireless connection choices get rid of the need for expensive cables and give centralized tracking systems access to data in real time.

Economic Benefits and ROI

Strategically choosing an emitter affects the total cost of ownership by lowering the amount of upkeep needed and making the service last longer. To make sure they work reliably in tough situations, high-quality devices like the GPT200 go through a lot of tests, such as cycle loading and weather simulation. This dependability means less downtime and lower costs for repairs. By buying in bulk, you can get savings for buying more and build long-term ties with suppliers who can help you with technology issues and make changes to your order. OEM agreements make it possible to customize products to meet the needs of particular applications while keeping costs low.

Conclusion

Selecting between absolute and gauge pressure transmitters requires careful consideration of application requirements, environmental conditions, and performance specifications. Absolute transmitters excel in vacuum systems and sealed applications where atmospheric pressure variations must be excluded from measurements. Gauge transmitters provide cost-effective solutions for open systems where atmospheric pressure serves as a natural reference point. The GPT200 pressure transmitter exemplifies advanced technology that supports both measurement types while providing superior reliability and performance. Understanding these key differences enables procurement professionals and engineers to make informed decisions that optimize system performance and operational efficiency.

FAQ

Can gauge pressure transmitters measure vacuum conditions accurately?

Gauge pressure transmitters can measure vacuum conditions, but their accuracy depends on the specific design and calibration. These devices display vacuum as negative gauge pressure values relative to atmospheric pressure. However, absolute pressure transmitters typically provide more accurate vacuum measurements since they reference true vacuum conditions rather than variable atmospheric pressure.

What factors most significantly influence measurement accuracy between absolute and gauge pressure transmitters?

Temperature stability, calibration quality, and reference pressure stability most significantly affect measurement accuracy. Absolute transmitters maintain consistent vacuum references but require protection from temperature fluctuations that might affect the sealed chamber. Gauge transmitters depend on stable atmospheric pressure communication through proper venting systems. Environmental factors such as humidity, vibration, and electromagnetic interference also impact both transmitter types.

How frequently should industrial pressure transmitters undergo calibration?

Calibration frequency varies based on application criticality, regulatory requirements, and environmental conditions. Safety-critical systems typically require quarterly or semi-annual calibration, while process monitoring applications may operate satisfactorily with annual calibration cycles. Harsh environments, corrosive media, or extreme temperatures may necessitate more frequent calibration intervals to maintain acceptable accuracy levels.
