Benefits of IP68 Diesel Tank Sensors in Harsh Environments

When your fleet operates in punishing conditions—extreme temperatures, constant vibration, exposure to moisture and contaminants—fuel monitoring becomes mission-critical. A diesel tank sensor with IP68 protection stands as the industry benchmark for reliability in these demanding scenarios. This rating ensures complete dust-tight sealing and continuous immersion protection, safeguarding measurement accuracy when standard sensors fail. Whether managing petroleum storage, marine fuel systems, or heavy machinery fleets, understanding how IP68-rated sensors outperform conventional alternatives can transform operational uptime and reduce costly maintenance interventions.

Understanding IP68 Diesel Tank Sensors

What the IP68 Rating Really Means?

The Ingress Protection grade tells you how well an enclosure keeps outside elements out. The best level of protection is IP68. The "6" rating means that it is completely safe from dust particles, and the "8" rating means that it can be safely submerged in water deeper than one meter for long periods of time. This two-way safety is very important for measuring fuel levels in places like underground storage tanks and offshore drilling sites where sensors are exposed to both liquids and airborne particles.

Technology Behind Robust Fuel Monitoring

Modern diesel fuel level sensors use a variety of measurement methods that work well with IP68 housings. Silicon-based pressure sensor elements are used in piezoresistive technology, which is widely used in industry because it is accurate and stable at high temperatures. This method is shown by the GAMICOS GLT5001, which has a very stable silicon piezoresistive core, as well as automatic temperature adjustment and digital correction circuits that can be programmed. This combined design gives standard analog or digital signal outputs while keeping interference resistance, which is very important in industrial areas with a lot of electromagnetic fields.

Capacitive sensors measure changes in the dielectric between electrodes, and hydrostatic pressure sensors use column weight to figure out the height of the liquid. Both of these technologies are compatible with IP68 standards. Each technology is best used for certain tasks. For example, capacitive sensors work best with fuels that don't conduct electricity, while hydraulic sensors are very accurate over a wide range of measurements. The decision is based on the properties of the fluid, the shape of the tank, and the needs for system integration.

Wireless Capabilities Expanding Monitoring Reach

New developments have put wireless communication methods inside IP68-rated housings. This lets you get data from afar without putting environmental protection at risk. LoRa, GPRS, NB-IoT, and 4G connectivity choices let you watch the fuel level of assets that are spread out in real time. This is especially helpful for fleet managers who need to keep an eye on vehicles at various sites or for oil companies who need to keep an eye on storage facilities that are spread out. These wireless fuel level devices get rid of the need for complicated wiring and give you quick tips on patterns of use, possible leaks, or attempts to get in without permission.

Core Benefits of IP68 Diesel Tank Sensors in Harsh Conditions

Unmatched Durability Extending Operational Life

Operating settings constantly test the building of sensors. Marine boats constantly move and saltwater can damage technology. Sensors on construction sites are susceptible to mud, dirt, and mechanical shock. When you work in mining, you are exposed to gritty dust and chemicals from fuel additives. Here are the main benefits that diesel tank sensors bring in these situations:

• Complete Moisture Barrier: The airtight closing stops water from getting in, which breaks down electronic parts, corrodes sensing elements, and causes signals to move. Even after being submerged for a long time during tank cleaning or floods, sensors keep their tuning accuracy.
• Contamination Resistance: The dust-tight design keeps out small particles that could build up on sensing surfaces and mess up measurements or create mechanical problems with moving parts. This safety is very important at fuel stations that are far away and where sand or industrial dust is in the air.

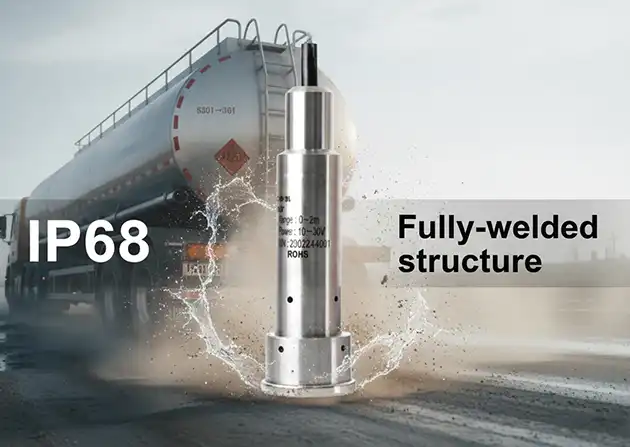

• Chemical Compatibility: Housings made of fully welded stainless steel or a special alloy can handle harsh diesel additives, biofuel mixes, and leftover cleaning agents without breaking down. Explosion-proof designs that are ATEX-certified add extra safety for places where fuel is dangerous.
• Shock and Vibration Tolerance: Stronger fixing systems and anti-vibration features, like the magnetic suction base found in some versions of the GLT5001 mobile tank, keep sensors from moving or getting damaged inside when the vehicle or equipment is used.

Failure rates go down directly because of these safety measures. In harsh circumstances, normal sensors may need to be replaced every 18 to 24 months. However, IP68-rated units often last longer than five years, which greatly reduces the total cost of ownership.

Measurement Precision That Withstands Environmental Stress

Accuracy affects how well product management works and how efficiently operations run. There are several ways that IP68 diesel fuel level monitors keep their measurements accurate. Temperature compensation methods change numbers when the temperature changes from below zero to high temperatures during operation. The GLT5001 has automatic temperature adjustment and customizable digital correction, which makes sure that readings stay stable from -40°C to +125°C, which is common in fuel storage outside and on mobile equipment.

Electrical noise from nearby motors, inverters, and RF emitters is filtered out by signal conditioning circuits. These are common sources of interference in industrial automation settings. This electromagnetic compatibility lets data be sent accurately even in plant floors or car electrical systems that have a lot of electrical noise. Different output choices (4-20mA analog, RS485 digital, or CAN bus protocols) make it easier to connect to different control systems without losing data quality.

A company that sells oil to remote mine sites found that IP68 sensors kept 97% of their measurement accuracy over three years, while non-rated options needed to be calibrated often and lost 78% of their accuracy. This uniformity makes accurate fuel reconciliation, theft detection, and automatic reordering possible, all of which have a direct effect on the revenue of businesses that use a lot of fuel.

Maintenance Reduction Lowering Lifecycle Costs

Every sensor failure leads to a chain of costs: calling in an expert, having to fix broken equipment, buying an emergency replacement, and resetting the system. IP68 security reduces these problems by making the device stronger so it can withstand the main ways that sensors fail. The fully welded structure gets rid of gasket decay and connection rust, which are two common reasons why sensors die too soon.

After upgrading to fuel tracking systems with an IP68 rating, commercial fleet owners say they get 60–70% fewer service calls related to sensors. Maintenance checks go from every three months to once a year, which frees up technicians' time to do more important tasks. When upkeep is needed, designs that are easy to get to, like the GLT5001's modular build, let parts be swapped out quickly without having to take out all the sensors or drain the tank.

Installation and Maintenance Best Practices for IP68 Diesel Tank Sensors

Strategic Mounting for Optimal Performance

The right way to install a diesel tank sensor starts with choosing where to mount it. Place sensors away from the fill and return lines to keep readings from changing because of movement. The bottom or lower sidewall of the tank offers stable measurement points. However, magnetic suction bases allow for easy shifting for mobile uses where permanent installation is not possible. Before attaching, make sure the mounting surface is clean, since dirt can weaken the magnetic grip or cause the seal to break in threaded installs.

Wiring paths should keep moving parts and heat sources as far away as possible. Use cable glands that meet or go beyond the IP68 rating of the sensor to keep the whole electrical line protected from the environment. When connecting to fuel management systems, make sure the signals work with each other and set the right scaling factors. For example, many sensors send out 4-20mA signals that need to be converted to volume units in the control software.

Proactive Troubleshooting Strategies

Even strong sensors can have problems that need to be systematically diagnosed. When you fill, air bubbles can get stuck against the sensing element and cause readings to be off. These will go away on their own as the fuel settles. Sudden signal loss is usually caused by damaged wire or corrosion in the connectors, not a broken sensor. Check the cable route and junction points before blaming the sensor. As signal drift gets worse over time, it means that tuning needs to be checked. Most good sensors come with field tuning instructions that use known reference values. But if the drift keeps happening after tuning, check to see if changes in the fuel's makeup (like yearly mixing of biodiesel) affect how the sensor responds. If they do, the measurement method might need to be tweaked instead of the hardware being replaced.

Extending Lifespan Through Preventive Care

Even though IP68 sensors can handle rough circumstances, they last longer if they are checked on a regular basis. Do eye checks once a year to make sure the case is solid, the cables are in good shape, and the connectors are clean. Use non-abrasive cleaning methods to get rid of the buildup of sediment on sensor surfaces. Soft brushes mixed with diesel solvent work well to remove deposits without harming protected layers. Check the security of the fastening, especially on mobile equipment where vibrations can slowly loosen the bolts.

During commissioning, write down baseline performance measures like signal levels at known fill states, response time during filling and draining cycles, and how well temperature compensation works across all working ranges. Comparing these baselines on a regular basis shows decline trends before they make measurements less accurate. This lets replacements be planned during routine maintenance instead of having to be done in an emergency.

Choosing the Right IP68 Diesel Tank Sensor for Your Needs

Evaluating Technology Options for Specific Applications

Procurement teams have to deal with a lot of different types of sensors, each of which is best for a certain situation. Wired sensors are easy to install and always have power, making them perfect for stable storage tanks where the cables can be easily routed. Wireless options are better for tracking fleet cars, remote generator sets, or temporary fuel storage where the cost of cabling is higher than the cost of the equipment or where the monitoring needs to be moved around a lot.

The GLT5001 has two models that can be used for different tasks. The first model is a general variant that can be used in fixed locations like fuel depots, industrial equipment, and marine vessel tanks. The second model is a magnetic suction base model that can be used in mobile settings like construction machinery, agricultural equipment, and temporary storage containers. The only difference between the two models is how they are mounted. Both versions provide the same IP68 safety and measurement performance.

Carefully think about the measurement range needs. Standard pressure ranges work well for shallow tanks (less than two meters deep), but extended range sensors are needed for deep storage or underground tanks to stay accurate over wider pressure ranges. The choice of output signal relies on the design of the control system. Older systems like analog 4-20mA signals, while newer automation platforms use digital RS485 or CAN bus protocols, which let multiple sensors connect over a single cable run.

Supplier Selection and Certification Verification

Working with well-known makers of a diesel tank sensor guarantees the quality of the products and helps with consistency. Check that the providers you're considering have third-party certifications that show they follow safety standards set by the European Union (CE marking), the RoHS (restricted substances) program, and the ATEX (explosion-proof designs for dangerous area installations) program. It is important to note that these certificates show that the products have been tested thoroughly and that they do what the maker says they can do.

GAMICOS is a great example of a company that is dedicated to thorough certification while also giving OEM installers and specialized applications the customization options they need. Their expert support team helps choose products, gives advice on how to integrate them, and fixes problems in the field. These are all skills that lower the risks of release and speed up project timelines. For large fleet upgrades or new building projects with tight deadlines, reliable shipping plans and the ability to supply large amounts of goods at once are essential.

Warranty coverage and the ability to get help after the sale are both important. Make sure that the guarantee covers both problems with the way the product was made and problems that happen in the surroundings. You can find out how quick a supplier is by placing trial orders or checking with current customers who have used similar products. A supplier's knowledge of your business will often be more important than small differences in technical specifications.

Future Trends and Technological Advances in IP68 Diesel Tank Sensors

IoT Integration Transforming Fuel Management

When sensor technology and Internet of Things systems come together, it makes it possible to see fuel reserves like never before. When IP68 wireless sensors send data to cloud-based analytics engines, they make it possible for predictive maintenance algorithms to predict sensor failure before it happens. These algorithms also make it possible to schedule fuel deliveries based on consumption patterns and find problems right away, rather than waiting days, that could mean theft or leakage.

In more advanced systems, fuel data is linked to operational measures like engine hours, car position, load weight, and weather. This contextual analysis finds inefficiencies that can't be seen with solo tracking. For example, it finds cars that use too much fuel when they're not moving or routes that need to be optimized to cut down on how often they need to be refueled. For oil distributors, collecting data from multiple customer sites helps them predict changes in demand, which makes it easier to handle supplies and plan deliveries.

Sustainability Driving Innovation

More and more, environmental laws require fuel storage and transportation networks to find leaks and cut down on emissions. Next-generation IP68 sensors measure more than one thing at once, like the amount of fuel, the temperature, and the pollution of the water. This means that a single installation can give a full picture of the health of a tank. This feature helps with following the rules and allows for proactive care that stops environmental problems.

When biodiesel and green diesel are used instead of petroleum diesel, they have different physical qualities that make fuel monitors more difficult to use. Manufacturers are working on adaptive methods and material choices that will make sure measurements are accurate for mixed fuels with amounts ranging from B5 to B100. By buying sensors that work with a wide range of fuels, setups will be ready for the future when fuel specs change.

Strategic Procurement Recommendations

When deciding where to invest in sensors, you should weigh the needs for instant functionality against the needs for future growth. Choose sensors that can receive software changes that add new features and improve protocols without having to replace the hardware. Prioritize providers who show continued investments in research and development (R&D) and participation in industry partnerships. These are signs of long-term success and technology plan alignment with new standards.

Think about the design of the whole system instead of just picking out individual parts. Putting together sensors, telemetry systems, and analytics tools all at once is more valuable than using separate best-of-breed parts that need to be custom-integrated. Suppliers who offer complete solutions that have been tested to work with each other make setup easier and help easier in the long run.

Conclusion

Diesel tank sensors are an important part of efficient fuel control in demanding marine, industrial, and mobile settings. The better protection they offer against environmental factors means that they last longer, measure more accurately, and need less upkeep than normal options. The GAMICOS GLT5001 is an example of advanced sensor design because it has a strong IP68-rated body, a variety of mounting choices, full certification compliance, and different output setups to meet a wide range of integration needs. As wireless connectivity and IoT analytics change how fuel monitoring works, buying sensors from companies that are committed to innovation will make sure that investments are still useful over longer operational lifetimes and provide immediate performance improvements in harsh environments.

FAQ

Q1: How does IP68 protection differ from lower IP ratings?

A: Lower grades, like IP67, let you be submerged for a short time, but they don't offer the long-term safety that IP68 does. When IP65 sensors are fully submerged in water, like when a tank is being cleaned or flooded, they don't work. However, they do work with water jets. The better sealing needed for IP68 certification makes production more difficult, but it's necessary for situations where sensors are constantly in touch with liquids, not just when they splash or drip.

Q2: Are IP68 diesel fuel level sensors compatible with all vehicle types?

A: These devices can be used on heavy-duty trucks, building equipment, farm tools, boats, and stationary storage tanks, among other things. Instead of the type of car, compatibility relies on how the tank is configured, how easy it is to place, and the voltage of the electrical system. The GLT5001's magnetic suction base version is designed for mobile uses where threaded installs aren't possible because of thin tank walls or the need to move the unit.

Q3: What maintenance procedures suit harsh environment installations?

A: For most uses, once a year is enough to do a check. You should look at the housing and cables to make sure they are in good shape, clean any buildup on the sensors' surfaces without scratching them, make sure the mounting is secure, and compare the current values to baseline performance measures. Unlike sensors that don't have IP68 protection, sealed designs don't need to be maintained on the inside. Instead, maintenance efforts should focus on keeping the outside clean and making sure the electrical connections are solid to extend the operating lifespan.

Partner with GAMICOS for Reliable Diesel Tank Sensor Solutions

When you upgrade to fuel tracking with an IP68 rating, the system becomes more reliable and runs more efficiently. GAMICOS is a top company that makes diesel tank sensors. They use advanced silicon piezoresistive technology and strict quality control measures, such as pressure cycles, aging tests, and environmental simulations, to make sure that every GLT5001 sensor meets high performance standards. Our engineering team offers full support, from helping with the initial design to helping with fitting and offering expert advice after the sale. GAMICOS offers custom solutions backed by CE, RoHS, and ATEX certifications known around the world. These include standard sensors for mass deployment or OEM customization with specific outputs, communication methods, or branding. Contact our experts at info@gamicos.com to talk about your fuel tracking needs, get detailed information, or set up product demos that show how IP68 protection can help your unique working conditions.

References

1. International Electrotechnical Commission (2013). IEC 60529: Degrees of protection provided by enclosures (IP Code). Geneva: IEC Central Office.

2. Fraden, J. (2016). Handbook of Modern Sensors: Physics, Designs, and Applications (5th ed.). New York: Springer International Publishing.

3. American Petroleum Institute (2020). API Standard 2350: Overfill Protection for Petroleum Storage Tanks (4th ed.). Washington, DC: API Publishing Services.

4. Webster, J.G. & Eren, H. (2018). Measurement, Instrumentation, and Sensors Handbook: Electromagnetic, Optical, Radiation, Chemical, and Biomedical Measurement (2nd ed.). Boca Raton: CRC Press.

5. Society of Automotive Engineers (2019). SAE J1939 Standards Collection: Recommended Practice for a Serial Control and Communications Heavy Duty Vehicle Network. Warrendale: SAE International.

6. National Fire Protection Association (2021). NFPA 30: Flammable and Combustible Liquids Code. Quincy: NFPA Publications.
