Full Range Pressure Measurement: Absolute, Gauge, Sealed Gauge

Full range pressure measurement encompasses three primary types: absolute, gauge, and sealed gauge. Each type serves specific purposes in industrial applications, providing crucial data for process control and safety. Absolute pressure measures against a perfect vacuum, gauge pressure references atmospheric pressure, and sealed gauge offers a fixed reference point. Understanding these distinctions is vital for selecting the right industrial pressure sensor for your application, ensuring accurate and reliable measurements across various industries and environments.

Understanding Absolute, Gauge, and Sealed Gauge Sensors

What Is Absolute Pressure Measurement?

Absolute pressure sensors measure pressure relative to a perfect vacuum. These industrial pressure sensors are crucial in applications where atmospheric pressure variations can significantly impact measurements. For instance, in altimeters used in aviation or in vacuum processing equipment, absolute pressure sensors provide indispensable data. They operate independently of atmospheric pressure changes, making them ideal for high-altitude or space applications where ambient pressure fluctuates dramatically.

What Is Gauge Pressure Measurement?

Gauge pressure sensors measure pressure relative to the current atmospheric pressure. This makes them the most common type of industrial pressure sensor, as they directly indicate the difference between the measured pressure and the surrounding air pressure. Gauge pressure sensors find extensive use in tire pressure monitoring, hydraulic systems, and many industrial processes where the pressure difference from the atmosphere is the critical factor. Their versatility and straightforward interpretation make them a staple in many engineering applications.

What Is Sealed Gauge Pressure Measurement?

Sealed gauge pressure sensors offer a middle ground between absolute and gauge pressure measurements. These industrial pressure sensors are sealed at a fixed reference pressure, typically around one atmosphere. This design makes them less susceptible to changes in atmospheric pressure compared to standard gauge sensors, while still providing a relative measurement. Sealed gauge sensors are particularly useful in harsh environments or at high altitudes where atmospheric pressure can vary significantly, ensuring consistent readings across different conditions.

Choosing Industrial Pressure Sensors for Accurate Measurement

Factors Influencing Sensor Selection

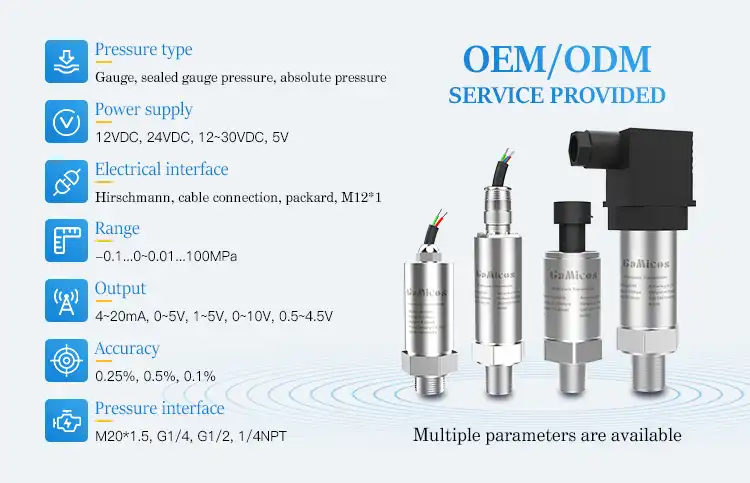

Selecting the right industrial pressure sensor involves considering several factors. The pressure range, accuracy requirements, and environmental conditions play crucial roles. For instance, high-temperature applications may require specially designed sensors with robust materials. The media being measured also impacts the choice, as corrosive substances demand sensors with appropriate chemical resistance. Additionally, the required output signal (analog or digital) and power supply constraints can narrow down the options. A thorough understanding of these factors ensures the selection of an industrial pressure sensor that delivers accurate and reliable measurements.

Application-Specific Considerations

Different industries have unique requirements for pressure measurement. In the pharmaceutical sector, hygienic sensors with easy-to-clean surfaces are essential to maintain sterility. Oil and gas applications often demand explosion-proof sensors capable of withstanding harsh conditions. For aerospace, lightweight and compact industrial pressure sensors are preferred to minimize payload. Understanding these application-specific needs is crucial for choosing the most suitable sensor type and design, ensuring optimal performance and compliance with industry standards.

Technological Advancements in Pressure Sensing

Recent technological advancements have significantly improved industrial pressure sensor capabilities. The integration of smart features, such as self-diagnostics and digital communication protocols, enhances reliability and ease of use. Miniaturization trends have led to more compact sensors without compromising accuracy. Moreover, the development of new materials and fabrication techniques has expanded the operating ranges and durability of pressure sensors. These innovations enable more precise measurements in challenging environments, opening up new possibilities for pressure monitoring across various industries.

How Industrial Pressure Sensors Handle Different Pressure Types?

Mechanisms for Absolute Pressure Measurement

Industrial pressure sensors designed for absolute pressure measurement typically employ a sealed reference chamber with a near-perfect vacuum. This chamber serves as the zero reference point against which the measured pressure is compared. The sensor element, often a diaphragm or strain gauge, deforms under applied pressure, generating an electrical signal proportional to the absolute pressure. Advanced calibration techniques ensure accuracy across a wide range of pressures, making these sensors invaluable in applications where precise absolute pressure readings are critical.

Techniques for Gauge Pressure Sensing

Gauge pressure sensors utilize a reference port open to the atmosphere, allowing them to measure pressure relative to the current ambient conditions. The industrial pressure sensor's measuring element compares the pressure of the measured medium against this atmospheric reference. This design enables the sensor to automatically compensate for changes in atmospheric pressure, providing consistent relative pressure readings. Various sensing technologies, including piezoresistive and capacitive methods, are employed to convert the pressure difference into an electrical output, offering flexibility in gauge pressure measurement applications.

Sealed Gauge Sensor Operation Principles

Sealed gauge pressure sensors combine elements of both absolute and gauge sensors. They contain a reference chamber sealed at a specific pressure, typically close to atmospheric pressure at sea level. This fixed reference allows the industrial pressure sensor to provide measurements relative to a constant baseline, regardless of atmospheric fluctuations. The sealed design protects the reference side from contamination and moisture, enhancing long-term stability and reliability. This makes sealed gauge sensors particularly suitable for applications in variable atmospheric conditions or where consistent long-term performance is crucial.

Conclusion

Understanding the distinctions between absolute, gauge, and sealed gauge pressure measurements is crucial for selecting the appropriate industrial pressure sensor for specific applications. Each type offers unique advantages, catering to different industrial needs and environmental conditions. As technology continues to advance, pressure sensors are becoming more accurate, robust, and versatile, opening up new possibilities for precise pressure measurement across various industries. By carefully considering the application requirements and leveraging the latest sensor technologies, engineers and manufacturers can ensure optimal performance and reliability in their pressure measurement systems.
