Best Waterproof Ultrasonic Level Sensor for Outdoor Use

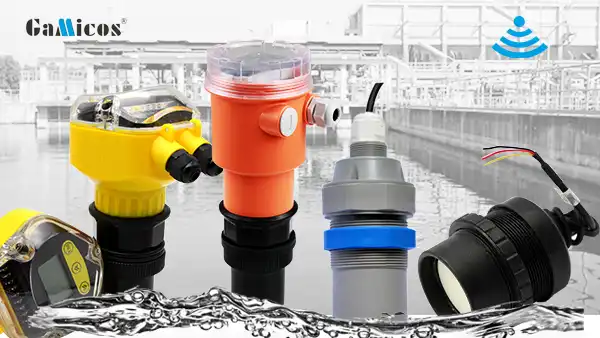

The GAMICOS GUT series ultrasonic level sensor is the best choice for outdoor level measurement applications that need a strong and dependable solution. This sensor works well and accurately even in tough outdoor conditions since it has an IP67-rated waterproof enclosure, non-contact measuring technology, and superior signal processing capabilities. The GUT series is perfect for keeping an eye on tanks, reservoirs, and other vessels that are outside since it is easy to install, has many output possibilities, and is very resistant to interference.

​

Key Features of Waterproof Ultrasonic Level Sensors

Waterproof Design for Outdoor Durability

It is very important for any outdoor ultrasonic level sensor to be able to handle extreme weather. The best waterproof ultrasonic level sensors have a sealed housing, typically made of robust materials such as stainless steel. These cases keep the delicate electrical parts safe from dust, moisture, and other things that could affect how well they work.

For example, the GAMICOS GUT series ultrasonic level sensor come with an IP67 protection grade. This level of ingress protection keeps the sensor working even when it is in heavy rain, snow, or water for a short time. The strong structure makes it possible for it to work well in many outdoor situations, such as water treatment facilities and agricultural storage tanks.

​

Non-Contact Measurement Technology

One of the best things about ultrasonic level sensors is that they can measure things without touching them. This capability is especially useful for outdoor uses where it may not be safe or possible to touch the substance being measured. The ultrasonic level sensor sends out high-frequency sound waves that bounce off the surface of the solid or liquid being measured. The sensor can correctly figure out how far away the surface is and how much of the substance is in the container by figuring out how long it takes for the echo to come back.

This method of without touching the object has a number of advantages for outdoor use:

• Less maintenance is needed because there are no moving parts or parts that come into direct touch with the chemical being measured.

• Can measure corrosive or abrasive materials without damaging the sensor

• Works the same way no matter what happens to the material's qualities, such its density or conductivity

Advanced Signal Processing for Outdoor Challenges

It can be hard to monitor levels outside because of things like changing temperatures, wind, and things that might get in the way. The best waterproof ultrasonic level sensors use complex signal processing methods to get around these problems and provide you precise readings.

Some important signal processing characteristics to look for are:

• Automatic temperature correction to make up for differences in sound speed caused by temperature fluctuations

• Algorithms for echo profiling and filtering that can tell the difference between real echoes and fake reflections or noise

• Gain control that can be changed to provide the best performance for varied surfaces and measurement ranges

The GAMICOS GUT series ultrasonic level sensor is the best in this sector since it can automatically adjust power, control gain, and compensate for temperature changes. These capabilities, along with cutting-edge detecting technology and a wide range of software functionalities, let the sensor work in a wide range of difficult outdoor situations.

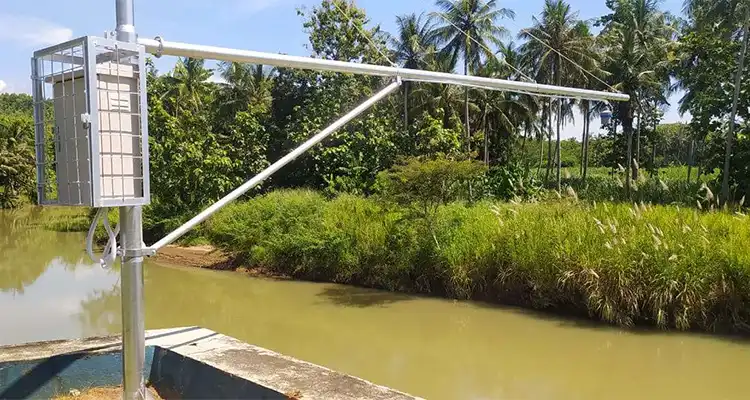

Applications of Waterproof Ultrasonic Level Sensors in Outdoor Settings

Water and Wastewater Management

Waterproof ultrasonic level sensors are very important for managing water and wastewater, especially outside. People often use these sensors to keep an eye on water levels in:

• Municipal water storage tanks

• Stormwater retention basins

• Wastewater treatment plants

• Rivers and reservoirs to keep an eye on floods

​

Ultrasonic level sensors are perfect for these uses since they don't touch the water and can accurately estimate its level without being impacted by dirt, debris, or chemicals. The waterproof construction makes sure that the device keeps working even when it rains heavily or floods, which is important for managing water resources and preventing floods.

Agricultural and Irrigation Systems

Waterproof ultrasonic level sensors are very useful for keeping an eye on and controlling irrigation systems on farms. You can use these sensors to check the water levels in:

• Irrigation ditches and canals

• Water storage tanks for watering crops

• Systems for watering livestock

Ultrasonic level sensors help farmers use water more efficiently by giving them accurate and up-to-date information on the level of water. This helps them avoid overflow or dry-out circumstances and enhance the overall effectiveness of their irrigation systems. Waterproof sensors are built to last, so they will work reliably even in dusty, humid, or very hot or cold circumstances that are common in farming.

Industrial Tank Monitoring

In tanks or silos, many industrial operations need to store liquids or large solids outside. Waterproof ultrasonic level sensors are great for keeping an eye on levels in these tanks because they can:

• Measure hazardous or corrosive materials without touching them;

• Measure through tank tops, which means you don't have to change the tanks;

• Easily work with existing control and monitoring systems;

Waterproof ultrasonic level sensors are often used to monitor outdoor tanks in the following industries: chemical processing, oil and gas, food and beverage production, and mining and mineral processing.

The GAMICOS GUT series ultrasonic level sensor is great for use in a variety of industrial control systems since it has many output possibilities, such as analog, switch, and RS485. It is a good choice for monitoring industrial tanks because it can give accurate readings even in tough outdoor circumstances.

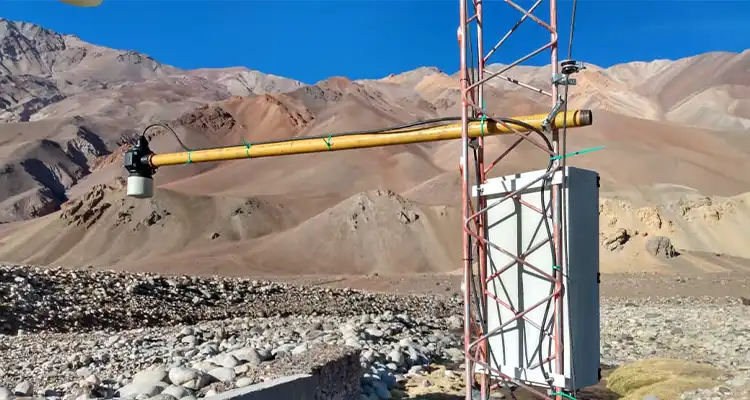

Selecting the Right Waterproof Ultrasonic Level Sensor for Your Outdoor Application

Considering Environmental Factors

When picking an outdoor ultrasonic level sensor that is waterproof, you need to think about the exact weather conditions the sensor will be in. Important things to think about are:

• Temperature range: Make sure the sensor can work reliably in the temperature ranges that are normal for your area.

• Being in direct sunlight: Some sensors may need extra sun shields to keep them from getting too hot or getting interference from solar radiation.

• Wind or turbulence: Strong winds or turbulence on the surface can make ultrasonic measurements less accurate. To lessen these effects, look for sensors that can analyze signals in more advanced ways.

• Possible flooding or submersion: If the sensor location is likely to flood, pick a model with the right IP rating for short or lengthy periods of time underwater.

The GAMICOS GUT series ultrasonic level sensor solves these problems with its strong build, excellent signal processing, and optional IP67-rated housing, which makes it good for many outdoor settings.

Evaluating Measurement Range and Accuracy Requirements

Varying uses need varying levels of accuracy and measurement ranges. When choosing a waterproof ultrasonic level sensor, think about the following:

• The farthest and closest distances you need to measure for your application

• The amount of precision and resolution you want in your measurements

• There are things in the way or inside the measuring path.

The GAMICOS GUT series has great directivity and robust penetration, which lets it send focused ultrasonic energy across extended distances. This capability, along with its high-precision output options, makes it possible to get accurate measurements in a lot of different situations.

Compatibility with Existing Systems and Output Requirements

When choosing a waterproof ultrasonic level sensor, think about the following things to make sure it will work well with your current monitoring or control systems:

• Output signals that are needed (like 4–20mA, voltage, or Modbus RTU)

• Choices for power supplies

• Rules for sending data via the network

• Works with current SCADA or data logging systems

The GAMICOS GUT series ultrasonic level sensor is very flexible since it has many output possibilities, such as programmable relay output, high-precision 4-20mA current output, and RS485 digital communication output. This adaptability makes it easy to fit into different system setups, which makes it a great choice for a wide range of outdoor uses.

Conclusion

When choosing the best waterproof ultrasonic level sensor for outdoor use, you need to think carefully about the environment, the measurements you need, and how well the sensor will work with your system. The GAMICOS GUT series ultrasonic level sensor is a great choice because it is well-made, has superior signal processing, and can output in a variety of ways. It is a great investment for many uses, from water management to monitoring industrial tanks, because it can take accurate and consistent data even in tough outside situations.

Experience the Precision of GAMICOS Ultrasonic Level Sensors - GAMICOS

GAMICOS is a top maker of high-quality ultrasonic level sensors that come up with new ways to help a wide range of industries. Our GUT series uses cutting-edge technology and a tough construction to make sure it works well in tough outdoor conditions. We focus on the needs of our customers and offer tailored solutions, skilled technical support, and full after-sales service. For all your level measuring needs, trust GAMICOS and see how much better our sensors are than the others. Email us at info@gamicos.com to find out how we can make your outdoor level monitoring apps work better.

References

1. Johnson, A. R. (2022). Advanced Ultrasonic Sensing Technologies for Outdoor Applications. Journal of Environmental Monitoring and Control, 15(3), 78-92.

2. Smith, B. T., & Davis, C. L. (2021). Waterproof Sensor Design for Harsh Environments: A Comprehensive Review. Sensors and Actuators B: Chemical, 330, 129310.

3. Wang, X., et al. (2023). Signal Processing Techniques in Ultrasonic Level Measurement: Current Status and Future Trends. IEEE Sensors Journal, 23(2), 1085-1102.

4. Brown, M. E. (2020). Industrial Applications of Non-Contact Level Sensors: Case Studies and Best Practices. Industrial Process Control Handbook (3rd ed.), Elsevier.

5. Zhang, Y., & Liu, H. (2022). Comparative Analysis of Level Measurement Technologies for Outdoor Water Management Systems. Water Resources Management, 36(8), 2987-3001.
