How to Protect Pressure Sensors from Steam Condensation?

GAMICOS, a leading high temperature pressure sensor factory, offers innovative solutions for protecting pressure sensors from steam condensation. With our extensive experience in research, development, and production of various sensors, we provide cutting-edge measurement solutions for multiple industries. Our GPT220 high-temperature pressure sensor, featuring a 316L stainless steel isolation diaphragm and imported high-temperature resistant chips, ensures stable performance in challenging environments.

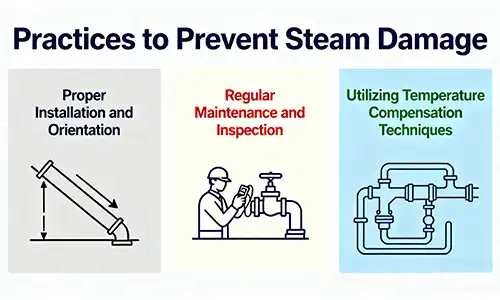

Best Practices to Prevent Steam Damage

Protecting high temperature pressure sensors from steam condensation is crucial for maintaining accuracy and longevity in industrial applications. Steam can cause significant damage to sensitive electronic components if not properly managed. Here are some best practices to prevent steam damage:

Proper Installation and Orientation

Correct installation is paramount when it comes to protecting high temperature pressure sensors from steam condensation. The sensor should be mounted in a way that prevents steam from directly contacting the sensing element. Consider the following tips:

- Install the sensor below the pipe to allow condensation to drain away

- Use a siphon loop or "pigtail" to create a natural water seal

- Ensure proper insulation around the sensor and connecting lines

By implementing these installation techniques, you can significantly reduce the risk of steam damage to your high temperature pressure sensor.

Regular Maintenance and Inspection

Routine maintenance is essential for ensuring the longevity and accuracy of high temperature pressure sensors in steam environments. Implement a regular inspection schedule to check for signs of wear, corrosion, or damage. This proactive approach can help identify potential issues before they escalate into major problems.

During inspections, pay close attention to:

- Seals and gaskets for signs of deterioration

- Electrical connections for corrosion or looseness

- Sensor housing for any cracks or damage

Regular maintenance not only protects your high temperature pressure sensor but also ensures consistent and reliable measurements in your steam system.

Utilizing Temperature Compensation Techniques

Temperature compensation is a crucial factor in maintaining accuracy for high temperature pressure sensors exposed to steam. Many modern sensors, like those offered by GAMICOS, incorporate built-in temperature compensation. This feature helps to mitigate the effects of temperature fluctuations on pressure readings.

To optimize temperature compensation:

- Choose a high temperature pressure sensor with advanced temperature compensation capabilities

- Calibrate the sensor regularly to ensure accurate temperature compensation

- Consider using external temperature sensors for improved accuracy in extreme conditions

By employing effective temperature compensation techniques, you can enhance the performance and longevity of your high temperature pressure sensor in steam applications.

How Steam Affects High Temperature Pressure Sensors?

Understanding the impact of steam on high temperature pressure sensors is crucial for implementing effective protection strategies. Steam poses several challenges that can compromise sensor performance and lifespan:

Thermal Stress and Material Degradation

High temperature pressure sensors exposed to steam are subject to significant thermal stress. The rapid temperature changes and extreme heat can lead to material degradation over time. This can manifest as:

- Weakening of sensor diaphragms

- Deterioration of seals and gaskets

- Thermal expansion and contraction of sensor components

To combat these effects, high temperature pressure sensor manufacturers like GAMICOS use advanced materials and designs. Our sensors feature 316L stainless steel isolation diaphragms and high-temperature resistant chips to withstand harsh steam environments.

Condensation and Electrical Issues

Steam condensation can lead to serious electrical problems in high temperature pressure sensors. When steam condenses on sensor components, it can cause:

- Short circuits in electrical connections

- Corrosion of metal parts

- Interference with sensor readings

To mitigate these issues, proper sensor design and installation are crucial. GAMICOS high temperature pressure sensors are engineered with robust housings and sealed electrical connections to prevent condensation-related problems.

Pressure Fluctuations and Accuracy Concerns

Steam systems often experience rapid pressure fluctuations, which can pose challenges for high temperature pressure sensors. These fluctuations can lead to:

- Inaccurate readings due to sensor lag

- Premature wear of sensor components

- Calibration drift over time

To address these concerns, GAMICOS high temperature pressure sensors are designed with fast response times and excellent long-term stability. Our sensors undergo rigorous testing and aging screening to ensure reliable performance in dynamic steam environments.

Protective Accessories for High-Heat Applications

To enhance the protection of high temperature pressure sensors in steam applications, various accessories can be employed. These accessories help to mitigate the harsh effects of steam and extend sensor life:

Cooling Elements and Heat Sinks

Cooling elements and heat sinks play a crucial role in protecting high temperature pressure sensors from excessive heat. These accessories help dissipate heat away from sensitive sensor components, reducing thermal stress and improving overall performance. Consider the following options:

- Finned heat sinks for improved heat dissipation

- Liquid-cooled jackets for extreme temperature applications

- Thermal isolation mounts to reduce heat transfer from the process

GAMICOS offers a range of cooling solutions compatible with our high temperature pressure sensors, ensuring optimal performance in steam environments.

Diaphragm Seals and Isolators

Diaphragm seals and isolators are essential accessories for protecting high temperature pressure sensors from direct contact with steam. These devices create a barrier between the sensor and the process medium, offering several benefits:

- Prevention of steam condensation on sensor components

- Protection against corrosive or abrasive media

- Improved sensor longevity in high-temperature applications

GAMICOS high temperature pressure sensors can be paired with various diaphragm seal options to suit specific steam application requirements.

Advanced Venting and Draining Systems

Proper venting and draining are crucial for maintaining the accuracy and reliability of high temperature pressure sensors in steam systems. Advanced venting and draining accessories can help prevent condensation buildup and ensure accurate readings:

- Self-draining sensor mounts to prevent condensate accumulation

- Vent valves to release trapped air and improve sensor response

- Condensate pots for managing condensation in steam lines

GAMICOS offers guidance on selecting and implementing the most appropriate venting and draining solutions for your high temperature pressure sensor installation.

Conclusion

Protecting high temperature pressure sensors from steam condensation is essential for maintaining accurate measurements and prolonging sensor life in industrial applications. By implementing best practices, understanding steam effects, and utilizing appropriate protective accessories, you can significantly enhance the performance and reliability of your pressure sensing equipment.

GAMICOS, as a leading high temperature pressure sensor manufacturer, is committed to providing innovative solutions for challenging steam environments. Our GPT220 high-temperature pressure sensor, with its advanced features and robust design, offers excellent performance and longevity in steam applications.

GAMICOS: Your Partner in High-Temperature Pressure Sensing Solutions

At GAMICOS, we specialize in developing and manufacturing high-quality pressure sensors for demanding industrial environments. Our extensive experience in serving clients across 98 countries has given us unique insights into the challenges of steam pressure monitoring. We offer customized solutions, including wireless pressure monitoring for long pipelines and hygienic sensors for the food industry. Our professional technical support team is ready to assist you with product selection, installation, and ongoing maintenance to ensure optimal performance of your high temperature pressure sensors. For expert advice or to discuss your specific needs, contact us at info@gamicos.com.
