How Do Thin Film Sensors Improve Machinery Pressure Safety?

Thin film sensors, particularly sputtered thin film pressure sensors, significantly enhance machinery pressure safety by providing precise, real-time pressure measurements in harsh industrial environments. These advanced sensors offer superior accuracy, durability, and responsiveness compared to traditional pressure measurement technologies. By enabling early detection of pressure anomalies and potential safety hazards, thin film sensors play a crucial role in preventing equipment failures, reducing downtime, and safeguarding personnel in various industrial applications.

Introducing Sputtered Thin Film Pressure Sensors

How Does Sputtered Thin Film Pressure Sensors Work?

Sputtered thin film pressure sensors utilize a sophisticated fabrication process to create highly sensitive pressure-sensing elements. The sputtering technique involves bombarding a target material with high-energy ions in a vacuum chamber, causing atoms to be ejected and deposited onto a substrate as a thin film. This process allows for precise control over the film's thickness and composition, resulting in sensors with exceptional performance characteristics.

The core of a sputtered thin film pressure sensor typically consists of a metal diaphragm coated with a thin layer of piezoresistive material. When pressure is applied, the diaphragm deforms, causing a change in the electrical resistance of the thin film. This resistance change is then converted into an electrical signal proportional to the applied pressure.

Advantages of Sputtered Thin Film Sensors

Sputtered thin film pressure sensors offer several advantages over traditional pressure measurement technologies:

- High accuracy and linearity

- Excellent long-term stability

- Low hysteresis and minimal drift

- Wide operating temperature range

- Compact size and low profile

- Robust construction for harsh environments

These characteristics make sputtered thin film pressure sensors ideal for critical machinery safety applications where reliable and precise pressure measurements are essential.

Comparison with Other Pressure Sensors

When compared to other pressure sensing technologies, sputtered thin film pressure sensors demonstrate superior performance in several key areas:

- Higher sensitivity and faster response times than capacitive sensors

- Better temperature stability and linearity than piezoresistive silicon sensors

- More compact and durable than traditional strain gauge sensors

- Lower hysteresis and better long-term stability than thick film sensors

These advantages make sputtered thin film pressure sensors the preferred choice for many critical machinery safety applications.

Industrial Applications of Thin Film Pressure Sensors

Enhancing Safety in Manufacturing Processes

Sputtered thin film pressure sensors play a crucial role in enhancing safety across various manufacturing processes. In hydraulic and pneumatic systems, these sensors provide accurate pressure readings, helping to prevent system failures and potential accidents. They are also used in injection molding machines to monitor and control pressure during the molding process, ensuring product quality and equipment longevity.

In the automotive industry, thin film pressure sensors are essential for monitoring brake fluid pressure, tire pressure, and engine oil pressure. These applications directly contribute to vehicle safety and performance. The aerospace sector also relies heavily on these sensors for critical pressure measurements in aircraft hydraulic systems and engine monitoring.

Optimizing Performance in Process Industries

Process industries, such as chemical manufacturing and oil refineries, benefit significantly from the use of sputtered thin film pressure sensors. These sensors provide accurate pressure measurements in pipelines, reactors, and storage tanks, helping to optimize processes and prevent dangerous overpressure situations. In the pharmaceutical industry, thin film pressure sensors ensure precise pressure control during drug manufacturing, contributing to product quality and safety.

The food and beverage industry also utilizes these sensors for monitoring pressure in processing equipment, ensuring food safety and consistency. In water treatment plants, thin film pressure sensors help monitor and control filtration processes, contributing to the production of safe drinking water.

Enhancing Machinery Safety with Thin Film Pressure Sensors

Early Detection of Pressure Anomalies

One of the primary ways sputtered thin film pressure sensors improve machinery safety is through early detection of pressure anomalies. These sensors can quickly identify deviations from normal operating pressures, allowing operators to take corrective action before a potentially dangerous situation develops. This capability is particularly crucial in high-pressure systems where sudden pressure spikes could lead to catastrophic failures.

For example, in hydraulic systems used in heavy machinery, thin film pressure sensors can detect minute pressure changes that might indicate a developing leak or component failure. By alerting operators to these issues early, the sensors help prevent equipment damage and potential safety hazards.

Improved Pressure Control and System Efficiency

Sputtered thin film pressure sensors enable more precise pressure control in various industrial processes. This improved control not only enhances safety but also contributes to increased system efficiency and reduced energy consumption. In compressors and pumps, for instance, these sensors allow for optimal pressure regulation, preventing overloading and reducing wear on components.

In the oil and gas industry, thin film pressure sensors play a critical role in well monitoring and control. They provide accurate downhole pressure measurements, essential for maintaining well integrity and preventing blowouts. This application demonstrates how these sensors directly contribute to safety in one of the most challenging industrial environments.

Integration with Safety Systems and IoT

The integration of sputtered thin film pressure sensors with modern safety systems and Internet of Things (IoT) platforms further enhances machinery safety. These sensors can be connected to automated shutdown systems, triggering immediate action if pressure levels exceed safe limits. This integration significantly reduces response times to potential hazards, minimizing the risk of accidents and equipment damage.

Furthermore, the compatibility of thin film pressure sensors with IoT systems allows for real-time monitoring and data analysis. This capability enables predictive maintenance strategies, where potential issues can be identified and addressed before they lead to equipment failures or safety incidents. The continuous stream of accurate pressure data also aids in long-term trend analysis, helping engineers improve system designs and safety protocols over time.

Conclusion

Sputtered thin film pressure sensors have revolutionized machinery safety across various industries. Their ability to provide accurate, real-time pressure measurements in challenging environments makes them invaluable for early detection of potential hazards, improved process control, and integration with advanced safety systems. As industrial processes become increasingly complex and automated, the role of these sensors in ensuring machinery safety will only grow in importance.

The continuous advancements in thin film sensor technology promise even greater improvements in accuracy, durability, and functionality. This ongoing evolution will further enhance the capability of these sensors to contribute to safer, more efficient industrial operations. As industries continue to prioritize safety and efficiency, sputtered thin film pressure sensors will remain at the forefront of pressure measurement technology, playing a crucial role in protecting both equipment and personnel in demanding industrial environments.

Innovative Pressure Measurement Solutions for Industrial Safety - GAMICOS

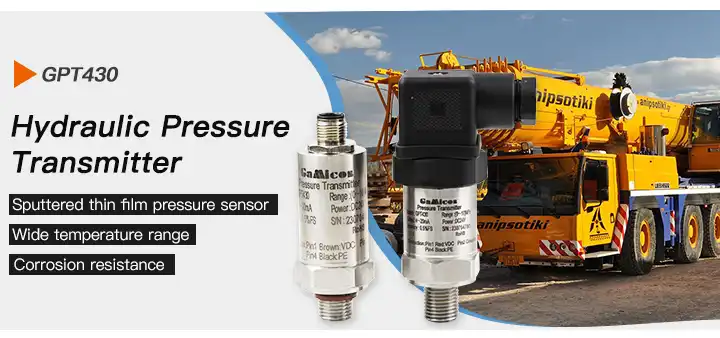

GAMICOS, a leading manufacturer of advanced pressure measurement solutions, offers state-of-the-art sputtered thin film pressure sensors designed to enhance machinery safety across diverse industries. Our GPT430 pressure transmitter, featuring a high-reliability metal sputtered thin-film core, exemplifies our commitment to innovation and quality. With comprehensive R&D capabilities, customized solutions, and integration of IoT technology, GAMICOS provides cutting-edge pressure monitoring systems that prioritize safety and efficiency. For expert guidance on implementing these advanced sensors in your operations, contact our team at info@gamicos.com.
